Na vervangen modem nog steeds instabiele verbinding

Bekijk oplossing

nadat ik ondekte dat mijn IPv6 tunnel wel heel erg traag was en hier op het community forum er een topic over zag staan, heb ik de UBC1318ZG (waar ik overigens ook zeer blij mee ben!)

enkel is het nog steeds niet stabiel! nu 2 dagen de UBEE, en op beide dagen klapte rond 16:00u de verbinding er helemaal uit. (met de witte CB kwam deze naar x minuten terug, nu niet!)

s'nachts gebeurt er ook van alles...

helaas kan ik niet heel veel info uit de UBEE vissen, maar ga ervan uit de de medewerkers bij Ziggo dit wel kunnen 😉

tevens staat de UBEE grotendeels van de dag in: "internet (Verbonden (partial bonding US))"

misschien komt dat omdat de UBEE een DOCSIS 3.1 is en de wijk nog DOCSIS 3.0 is???

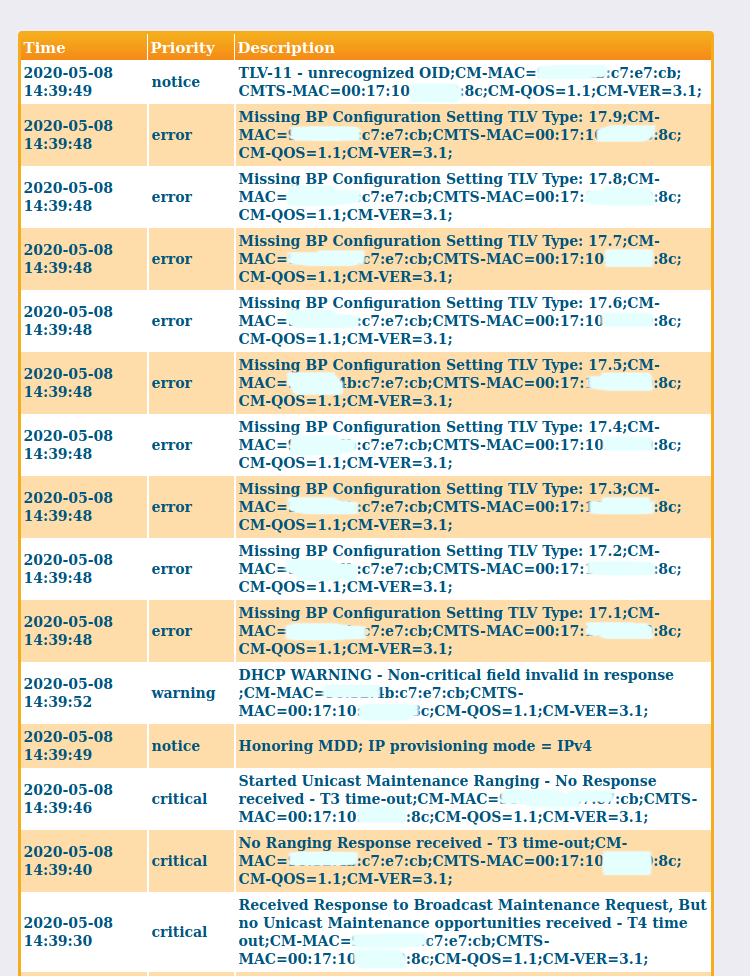

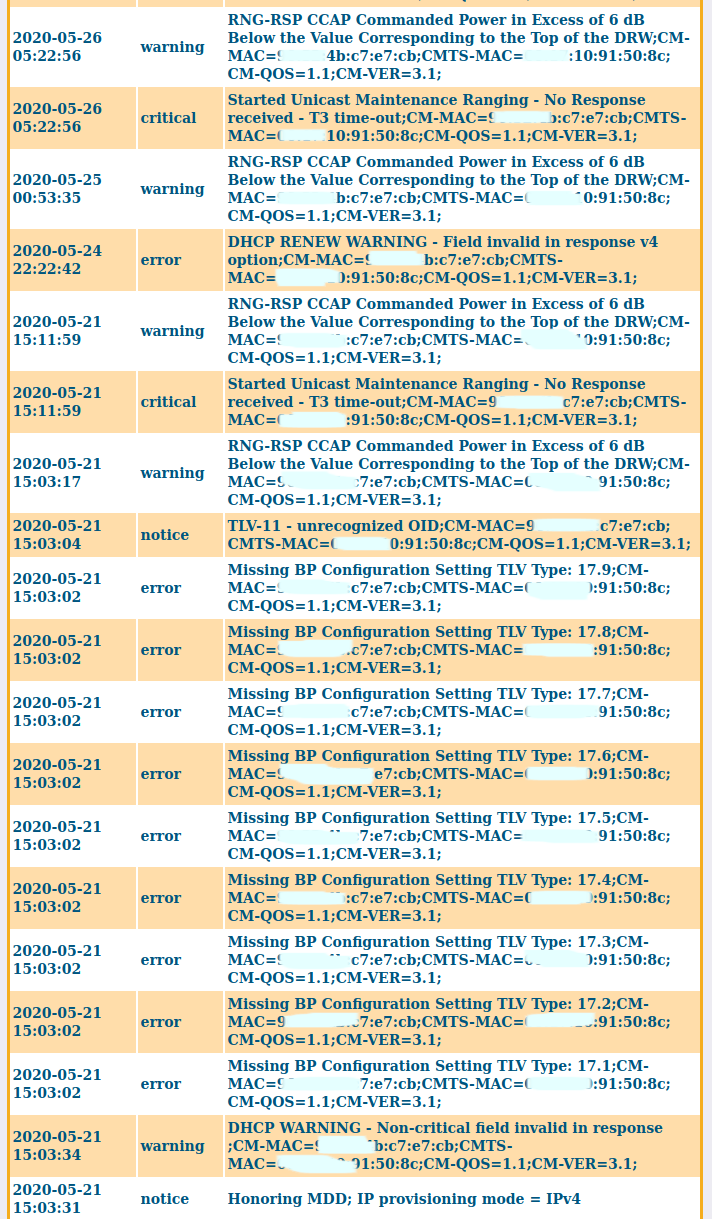

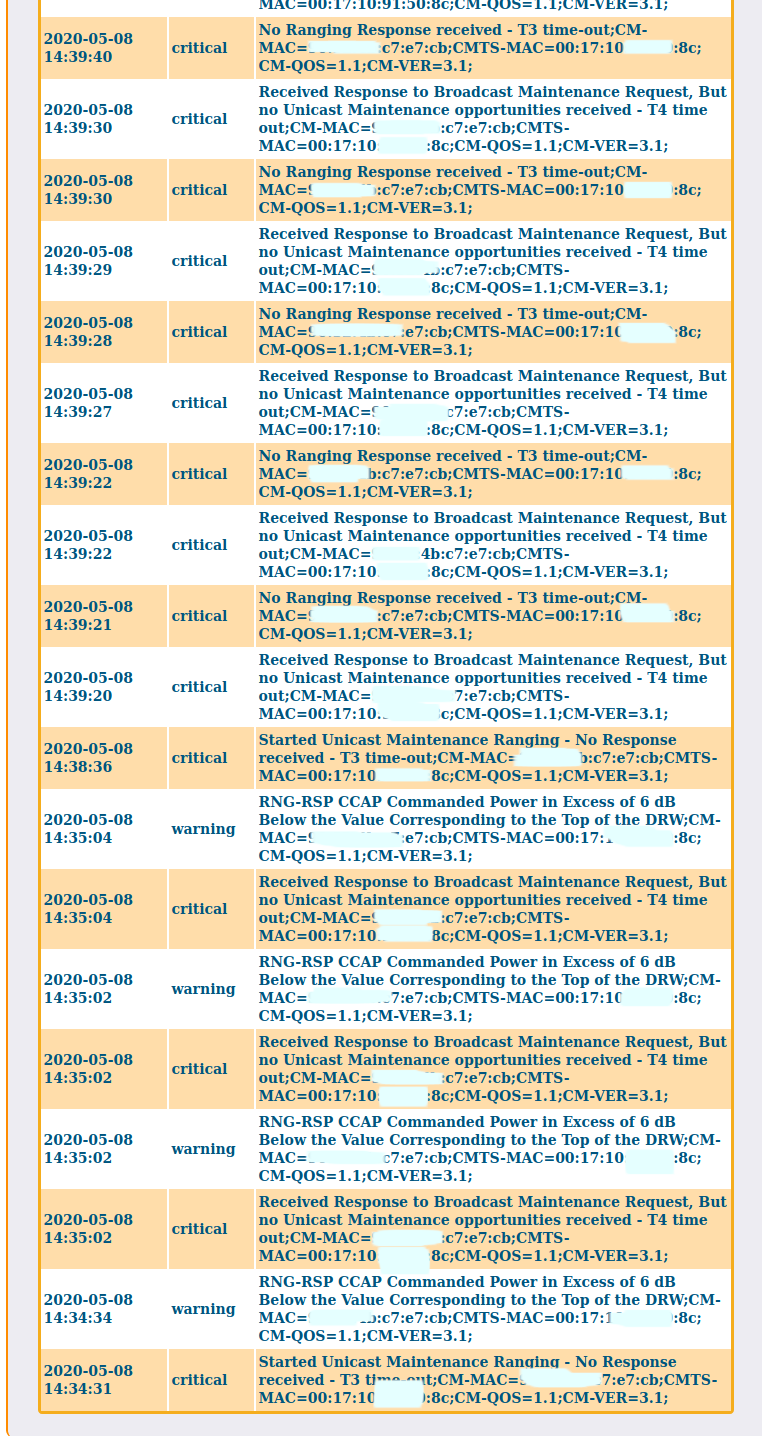

hierbij wat gegevens en screenshots (bijlage):

Standard Specification Compliant     DOCSIS 3.1
Hardware Version         2.73.1
Software Version         12.5.3208
Cable Modem MAC Address     XX:XX:XX:C7:E7:CB
Cable Modem Serial Number     U1318XXXXXXX
CM certificate     Installed



CM IP Prov Mode: Honor MDD
Ethernet WAN Mode:
Bidirectional Forwarding Detection:
Current System Time: Fri May 8 11:03:34 2020

Startup Procedure
Procedure            Status    Comment
Acquire Downstream Channel    850000000    Locked
Connectivity State        OK    Operational
Boot State            OK    Operational
Configuration File        OK    soho11_nowifi_v4.bin
Security            Enabled    BPI+

CM Downstream Channel Info
Channel    Lock Status    Channel Type    Channel ID    Frequency    Width    Power    SNR    Modulation Profile ID    Correctables    Uncorrectables
1    Locked    SC-QAM Downstream    32    850000000 Hz    8000000 Hz    6.2 dBmV    38.9 dB    QAM256    369    201
2    Locked    SC-QAM Downstream    1    602000000 Hz    8000000 Hz    9.8 dBmV    40.5 dB    QAM256    722    229
3    Locked    SC-QAM Downstream    2    610000000 Hz    8000000 Hz    9.6 dBmV    40.7 dB    QAM256    712    220
4    Locked    SC-QAM Downstream    3    618000000 Hz    8000000 Hz    9.5 dBmV    40.6 dB    QAM256    581    183
5    Locked    SC-QAM Downstream    4    626000000 Hz    8000000 Hz    10 dBmV        40.8 dB    QAM256    460    216
6    Locked    SC-QAM Downstream    5    634000000 Hz    8000000 Hz    10.1 dBmV    40.7 dB    QAM256    477    216
7    Locked    SC-QAM Downstream    6    642000000 Hz    8000000 Hz    10.1 dBmV    40.5 dB    QAM256    483    208
8    Locked    SC-QAM Downstream    7    650000000 Hz    8000000 Hz    10.2 dBmV    40.7 dB    QAM256    398    217
9    Locked    SC-QAM Downstream    8    658000000 Hz    8000000 Hz    10 dBmV        40.6 dB    QAM256    453    186
10    Locked    SC-QAM Downstream    9    666000000 Hz    8000000 Hz    10.1 dBmV    40.6 dB    QAM256    310    226
11    Locked    SC-QAM Downstream    10    674000000 Hz    8000000 Hz    9.4 dBmV    40.3 dB    QAM256    613    244
12    Locked    SC-QAM Downstream    11    682000000 Hz    8000000 Hz    8.8 dBmV    40.1 dB    QAM256    678    267
13    Locked    SC-QAM Downstream    12    690000000 Hz    8000000 Hz    8.7 dBmV    40.1 dB    QAM256    893    255
14    Locked    SC-QAM Downstream    13    698000000 Hz    8000000 Hz    9.2 dBmV    40.3 dB    QAM256    451    236
15    Locked    SC-QAM Downstream    14    706000000 Hz    8000000 Hz    8.9 dBmV    40.1 dB    QAM256    515    271
16    Locked    SC-QAM Downstream    15    714000000 Hz    8000000 Hz    8.5 dBmV    39.9 dB    QAM256    793    293
17    Locked    SC-QAM Downstream    16    722000000 Hz    8000000 Hz    7.9 dBmV    39.4 dB    QAM256    1053    248
18    Locked    SC-QAM Downstream    17    730000000 Hz    8000000 Hz    8 dBmV        39.6 dB    QAM256    1046    207
19    Locked    SC-QAM Downstream    18    738000000 Hz    8000000 Hz    8.3 dBmV    39.8 dB    QAM256    552    266
20    Locked    SC-QAM Downstream    19    746000000 Hz    8000000 Hz    8.2 dBmV    39.8 dB    QAM256    562    184
21    Locked    SC-QAM Downstream    20    754000000 Hz    8000000 Hz    8.1 dBmV    40 dB    QAM256    562    171
22    Locked    SC-QAM Downstream    21    762000000 Hz    8000000 Hz    7.9 dBmV    39.8 dB    QAM256    617    137
23    Locked    SC-QAM Downstream    22    770000000 Hz    8000000 Hz    7.6 dBmV    39.3 dB    QAM256    870    107
24    Locked    SC-QAM Downstream    23    778000000 Hz    8000000 Hz    7.8 dBmV    39.6 dB    QAM256    404    97
25    Locked    SC-QAM Downstream    24    786000000 Hz    8000000 Hz    7.8 dBmV    39.8 dB    QAM256    467    83
26    Locked    SC-QAM Downstream    25    794000000 Hz    8000000 Hz    7.8 dBmV    39.7 dB    QAM256    280    116
27    Locked    SC-QAM Downstream    26    802000000 Hz    8000000 Hz    7.8 dBmV    39.8 dB    QAM256    263    125
28    Locked    SC-QAM Downstream    27    810000000 Hz    8000000 Hz    7.2 dBmV    39.6 dB    QAM256    446    145
29    Locked    SC-QAM Downstream    28    818000000 Hz    8000000 Hz    7.8 dBmV    40 dB    QAM256    300    149
30    Locked    SC-QAM Downstream    29    826000000 Hz    8000000 Hz    7.3 dBmV    39.6 dB    QAM256    283    181
31    Locked    SC-QAM Downstream    30    834000000 Hz    8000000 Hz    7.2 dBmV    39.5 dB    QAM256    266    183
32    Locked    SC-QAM Downstream    31    842000000 Hz    8000000 Hz    6.8 dBmV    39.1 dB    QAM256    329    200

CM Upstream Channel Info
Channel    Lock Status    Channel Type    Channel ID    Frequency    Width    Power    Modulation/Profile ID
1    Locked    ATDMA    1    57800000 Hz    6400000 Hz    43.8 dBmV    2
2    Locked    ATDMA    2    50900000 Hz    6400000 Hz    44.3 dBmV    2
3    Locked    ATDMA    3    44000000 Hz    6400000 Hz    43 dBmV        2
4    Locked    ATDMA    4    37100000 Hz    6400000 Hz    43.3 dBmV    2
5    Locked    ATDMA    5    31800000 Hz    3200000 Hz    44.3 dBmV    2
6    Locked    ATDMA    6    28600000 Hz    3200000 Hz    44.5 dBmV    2



valt mij op dat de T3 errors (en een paar T4) allemaal lijden naar de CMTS (iets wat buitenshuis is)…

wat is hier aan de hand?



ik ga vandaag om 16:00u er weer klaar voor zitten dat de boel eruit klapt...

Voorbeeldbestand
148 KB
Voorbeeldbestand
406 KB
Voorbeeldbestand
343 KB
Voorbeeldbestand
265 KB
Voorbeeldbestand
433 KB
Voorbeeldbestand
429 KB
0 Kudos
e-mail meldingen
Aan Uit
Oplossing

Geaccepteerde oplossingen
annoniempjuh
Level 1
Topicstarter
september 2020

Update:

Inmiddels alweer een tijdje verder, en tot op heden geen enkele problemen meer gehad! (behalve dan met eigen hardware 😉 )

Nogmaals een Dikke Shout-Out naar de betreffende monteur die dit probleem wist te tackelen!

Bekijk in context

34 Reacties 34
Jan F.
Level 20
mei 2020

Heeft u de modem via een versterker aangesloten?

0 Kudos
annoniempjuh
Level 1
Topicstarter
mei 2020

nee, enkel de door ziggo geleverde splitter zit tussen de AOP en de UBEE. (en nee, ik ga niet weer dagen zonder TV zitten, splitter ertussen uit gaf toen met de witte CB geen verbetering)



Jan F.
Level 20
mei 2020
annoniempjuh wrote:

…….. (en nee, ik ga niet weer dagen zonder TV zitten, splitter ertussen uit gaf toen met de witte CB geen verbetering)



Nee, die mag van mij blijven zitten. Ik stelde de vraag omdat ik het downstream signaal hoog vind. Dat kan tot problemen leiden. Het upstream signaal ziet er normaal uit. Misschien een idee voor Ziggo om de sterkte van uw signaal in de straatkast wat terug te schroeven.

annoniempjuh
Level 1
Topicstarter
mei 2020

ik snap sowieso niet waarom je de modem zelf nog eens achter een versterker plaatst, zal denk ik aan mij liggen 😉

downstream vind ik ook wel een de hoge kant, de UBEE zelf vind dat volgens mij ook:

RNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=00:17:XX:XX:XX:8c;CM-QOS=1.1;CM-VER=3.1;



Henno
Level 17
mei 2020

https://volpefirm.com/docsis_timeout_descriptions/

De docsis datastroom met ranging info is een aantal keren niet aangekomen, dit leid tot een T3 fout: verbreken van je verbinding.

Als het voortdurend op hetzelfde tijdstip is dan lijkt de meest voor de hand liggende oorzaak in ruis op de verbinding naar de CMTS.



gr, Henno

Jan F.
Level 20
mei 2020
annoniempjuh wrote:

ik snap sowieso niet waarom je de modem zelf nog eens achter een versterker plaatst, zal denk ik aan mij liggen 😉

Nee, en dat is in het algemeen ook niet nodig, maar ik heb al een heel aantal voorbij zien komen op dit forum.

annoniempjuh
Level 1
Topicstarter
mei 2020

De UBEE zal wel hebben gedacht, "hij zit er klaar voor", verassing! we komen een uurtje eerder!

weer een drop out. verbinding klapte er volledig uit. moest ditmaal zelf de utp kabel tussen UBEE en eigen router verwijderen (waar bij de witte CB dit niet hoefde, had naar x minuten weer verbinding)

ditmaal een aantal T4 errors:



 de status van de modem staat nu weer op:

Internet (Verbonden - bridge mode) ← goed dus.



0 Kudos
annoniempjuh
Level 1
Topicstarter
mei 2020

net contact gehad met de (zakelijke)klantenservice, hij konden niks zien, waardes staan prima. in overleg ga ik dit weekend de UBEE omzetten naar Router modus en enkel de laptop erop aan data verzamelen (screenshots etc.) de meldingen die ik hier in het bericht boven zag hij (kl. serverice) niet.

Ik gebruik o.a. Vlans, 'even' de OPNsense router ertussen uit betekend 90% van mijn netwerk plat, dus dan maar met enkel met de laptop troubleshooten...

0 Kudos
annoniempjuh
Level 1
Topicstarter
mei 2020

even een update,

nadat ik de zaterdag middag de UBEE uit bridge modus haalde, en ik ontdekte dat ik in opnsense even een vinkje weg moest halen bij de WAN interface. kreeg ik opnsense ook werkend achter de ubee in 'NAT' modus.

hier viel mij op dat suricata (IPS/IDS services) in eens de boel blokkeerde, zowel inkomend als uitgaande. dit heeft mij naar de diep liggende logboeken doen leiden en hier viel mij op dat er een rule was die het nodige blokkeerde van en naar 255.255.255.255 (ik zag in de syteem logboek dat er een dhcprequest naar toegestuurd werd)

deze regels uitgeschakeld en nu 5 dagen verder geen problemen meer waargenomen, laatste foutmeldingen in de UBEE is van 11/05.

denk dat een update van de 'rules' de boel sloopte, ik heb suricata behoorlijk streng ingesteld 😉

(of er is achter de schermen bij Ziggo de nodige wijzigingen doorgevoerd nadat ik gebeld had 😛 )





0 Kudos
annoniempjuh
Level 1
Topicstarter
mei 2020

hmm, te vroeg gejuicht. op het moment dat ik bewust suricata had uitstaan (ik wou 'm nog wat fine-tunen, om te voorkomen dat ie de boel sloopt deed ik het maar even uit), klapte de boel er toch weer uit.

OPNSENSE meld meerdere malen:

dhclient[99496]: DHCPREQUEST on em0 to 255.255.255.255 port 67

UBEE:

Time Priority Description
2020-05-14 16:02:10 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 16:02:10 critical No Ranging Response received - T3 time-out;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 16:02:10 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 16:01:24 critical Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 16:01:03 warning RNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 16:00:57 critical Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:32:58 warning RNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:32:53 notice TLV-11 - unrecognized OID;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:32:52 error Missing BP Configuration Setting TLV Type: 17.9;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:32:52 error Missing BP Configuration Setting TLV Type: 17.8;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:32:52 error Missing BP Configuration Setting TLV Type: 17.7;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:32:52 error Missing BP Configuration Setting TLV Type: 17.6;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:32:52 error Missing BP Configuration Setting TLV Type: 17.5;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:32:52 error Missing BP Configuration Setting TLV Type: 17.4;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:32:52 error Missing BP Configuration Setting TLV Type: 17.3;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:32:52 error Missing BP Configuration Setting TLV Type: 17.2;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:32:52 error Missing BP Configuration Setting TLV Type: 17.1;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:33:27 warning DHCP WARNING - Non-critical field invalid in response ;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:33:24 notice Honoring MDD; IP provisioning mode = IPv4
2020-05-14 15:33:22 critical Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:33:20 critical No Ranging Response received - T3 time-out;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:33:10 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:33:09 critical No Ranging Response received - T3 time-out;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:33:09 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:33:06 critical No Ranging Response received - T3 time-out;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:33:06 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:33:06 critical No Ranging Response received - T3 time-out;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:33:06 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:33:03 critical No Ranging Response received - T3 time-out;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:33:03 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:33:03 critical No Ranging Response received - T3 time-out;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-05-14 15:33:02 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=XX:XX:XX:c7:e7:cb;CMTS-MAC=XX:XX:XX:91:50:8c;CM-QOS=1.1;CM-VER=3.1;



ik had hiet beter geen update kunnen plaatsen...

0 Kudos
Alex
Community Moderator
Community Moderator
mei 2020

Hi @annoniempjuh, sorry dat een nieuwe reactie wat lang op zich heeft laten wachten. Erg zonde dat je update uiteindelijk toch niet positief was

We zijn inmiddels enige tijd verder; hoe staat het er voor? In de afgelopen dagen ziet het signaal er aan deze kant prima uit. Ik ben benieuwd!

0 Kudos
annoniempjuh
Level 1
Topicstarter
mei 2020
Alex Ziggo wrote:

Hi @annoniempjuh, sorry dat een nieuwe reactie wat lang op zich heeft laten wachten. Erg zonde dat je update uiteindelijk toch niet positief was

We zijn inmiddels enige tijd verder; hoe staat het er voor? In de afgelopen dagen ziet het signaal er aan deze kant prima uit. Ik ben benieuwd!

kijkend in de logboek van de UBEE is het al een stuk rustiger, enkel blijven er nog steeds T3 en T4 errors langskomen (Met de Connectbox had ik nagenoeg geen enkele T4 error)

OPNsense is ook een stuk rustiger, heb de afgelopen week geen enkele keer de boel te hoeven herstarten, dus er is verbetering.

enkel kijken in de UBEE logboeken blijven er een aantal meldingen voorbij komen die ik niet helemaal vertrouw:





0 Kudos
annoniempjuh
Level 1
Topicstarter
juni 2020

 Het is sinds gisteren 5:00u weer erg slecht, Ik beging hier nu toch echt wel heel erg moe van te worden. vandaag kreeg ik weer eens geen contact met het thuisnetwerk met mijn mobiel (ik was buitenshuis, dus op mobiele netwerk!), start tijd weet ik niet, nu net weer een utp stekker ontkoppeld terug geduwd.

2020-06-23 15:36:34 warning DHCP WARNING - Non-critical field invalid in response ;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:36:31 notice  Honoring MDD; IP provisioning mode = IPv4 2020-06-23 15:36:30 critical    Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:36:27 critical    No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:36:17 critical    Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:36:16 critical    No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:36:16 critical    Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:36:16 critical    No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:36:16 critical    Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:36:15 critical    No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:36:15 critical    Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:35:29 critical    Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:30:18 warning RNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:30:13 notice  TLV-11 - unrecognized OID;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:30:12 error   Missing BP Configuration Setting TLV Type: 17.9;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;

T4, T3, T4, T3, T4, T3…. Wauw!



Time    Priority    Description 2020-06-23 15:20:31 warning RNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:20:25 notice  TLV-11 - unrecognized OID;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:20:24 error   Missing BP Configuration Setting TLV Type: 17.9;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:20:24 error   Missing BP Configuration Setting TLV Type: 17.8;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:20:24 error   Missing BP Configuration Setting TLV Type: 17.7;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:20:24 error   Missing BP Configuration Setting TLV Type: 17.6;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:20:24 error   Missing BP Configuration Setting TLV Type: 17.5;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:20:24 error   Missing BP Configuration Setting TLV Type: 17.4;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:20:24 error   Missing BP Configuration Setting TLV Type: 17.3;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:20:24 error   Missing BP Configuration Setting TLV Type: 17.2;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:20:24 error   Missing BP Configuration Setting TLV Type: 17.1;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:20:22 warning DHCP WARNING - Non-critical field invalid in response ;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:20:19 notice  Honoring MDD; IP provisioning mode = IPv4 2020-06-23 15:20:07 critical    SYNC Timing Synchronization failure - Loss of Sync;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:20:07 critical    Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:20:07 critical    No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:20:07 critical    SYNC Timing Synchronization failure - Loss of Sync;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:20:07 critical    Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:20:07 critical    No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:20:06 critical    SYNC Timing Synchronization failure - Loss of Sync;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:20:06 critical    Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:20:06 critical    SYNC Timing Synchronization failure - Loss of Sync;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:20:02 critical    Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:19:37 critical    SYNC Timing Synchronization failure - Loss of Sync;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:19:37 critical    Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:19:36 critical    SYNC Timing Synchronization failure - Loss of Sync;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:19:36 critical    Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:19:36 critical    SYNC Timing Synchronization failure - Loss of Sync;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:19:36 critical    Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:19:36 critical    SYNC Timing Synchronization failure - Loss of Sync;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:19:36 critical    Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1; 2020-06-23 15:19:36 critical    SYNC Timing Synchronization failure - Loss of Sync;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;



en dan vandaag weer:

Time Priority Description
2020-06-24 18:24:53 warning RNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 18:24:53 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 18:24:33 warning RNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 18:24:27 notice CM-STATUS message sent. Event Type Code: 5; Chan ID: 5 8 9 10 12 15 16 17 18 30 31 ; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 18:24:23 warning RNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 18:24:06 critical Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 16:36:43 warning RNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 16:36:38 notice TLV-11 - unrecognized OID;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 16:36:36 error Missing BP Configuration Setting TLV Type: 17.9;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 16:36:36 error Missing BP Configuration Setting TLV Type: 17.8;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 16:36:36 error Missing BP Configuration Setting TLV Type: 17.7;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 16:36:36 error Missing BP Configuration Setting TLV Type: 17.6;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 16:36:36 error Missing BP Configuration Setting TLV Type: 17.5;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 16:36:36 error Missing BP Configuration Setting TLV Type: 17.4;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 16:36:36 error Missing BP Configuration Setting TLV Type: 17.3;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 16:36:36 error Missing BP Configuration Setting TLV Type: 17.2;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 16:36:36 error Missing BP Configuration Setting TLV Type: 17.1;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 16:36:36 warning DHCP WARNING - Non-critical field invalid in response ;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 16:36:33 notice Honoring MDD; IP provisioning mode = IPv4
2020-06-24 16:36:22 notice CM-STATUS message sent. Event Type Code: 6; Chan ID: 6 ; DSID: N/A; MAC Addr: N/A; OFDM/OFDMA Profile ID: N/A.;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 16:36:22 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 16:35:52 critical Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 16:35:51 warning RNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 16:35:36 critical Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 14:59:33 warning RNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 14:59:28 notice TLV-11 - unrecognized OID;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 14:59:26 error Missing BP Configuration Setting TLV Type: 17.9;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 14:59:26 error Missing BP Configuration Setting TLV Type: 17.8;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 14:59:26 error Missing BP Configuration Setting TLV Type: 17.7;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 14:59:26 error Missing BP Configuration Setting TLV Type: 17.6;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 14:59:26 error Missing BP Configuration Setting TLV Type: 17.5;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-24 14:59:26 error Missing BP Configuration Setting TLV Type: 17.4;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;



Note: ik heb sinds kort een 2e lijn op OPNsense zitten en deze is ECHT Rock Solit.

paar weken terug moest ik voor werkzaamheden de meterkast leegruimen, nadat het klaar was dacht ik van: laat ik die splitter er nu eens tussenuit laten, Nou, die zat er snel weer tussen! ik kwam niet eens online!

tijdens het schrijven van deze bericht staat de UBEE weer in "Verbonden (partial bonding US)"

Terwijl mijn OPNsense bakkie geen enkel fout heeft...

0 Kudos
annoniempjuh
Level 1
Topicstarter
juni 2020

 die T3, T4, T3, T4, T3, T4, T3 dit doet ie nu dagelijks! wederom weer rond 16:00u! dat was een aantal weken geleden ook al, toen was het wat rustiger, maar nu deze week weer erg slecht...

Time

 Priority Description
2020-06-25 15:29:50 warning RNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:44 notice TLV-11 - unrecognized OID;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:43 error Missing BP Configuration Setting TLV Type: 17.9;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:43 error Missing BP Configuration Setting TLV Type: 17.8;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:43 error Missing BP Configuration Setting TLV Type: 17.7;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:43 error Missing BP Configuration Setting TLV Type: 17.6;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:43 error Missing BP Configuration Setting TLV Type: 17.5;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:43 error Missing BP Configuration Setting TLV Type: 17.4;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:43 error Missing BP Configuration Setting TLV Type: 17.3;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:43 error Missing BP Configuration Setting TLV Type: 17.2;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:43 error Missing BP Configuration Setting TLV Type: 17.1;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:48 warning DHCP WARNING - Non-critical field invalid in response ;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:45 notice Honoring MDD; IP provisioning mode = IPv4
2020-06-25 15:29:32 critical No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:23 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:21 critical No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:21 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:20 critical No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:20 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:19 critical No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:19 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:19 critical No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:18 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:28:32 critical

Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
0 Kudos
annoniempjuh
Level 1
Topicstarter
juni 2020
Time Priority Description
2020-06-25 15:29:50 warning RNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:44 notice TLV-11 - unrecognized OID;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:43 error Missing BP Configuration Setting TLV Type: 17.9;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:43 error Missing BP Configuration Setting TLV Type: 17.8;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:43 error Missing BP Configuration Setting TLV Type: 17.7;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:43 error Missing BP Configuration Setting TLV Type: 17.6;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:43 error Missing BP Configuration Setting TLV Type: 17.5;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:43 error Missing BP Configuration Setting TLV Type: 17.4;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:43 error Missing BP Configuration Setting TLV Type: 17.3;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:43 error Missing BP Configuration Setting TLV Type: 17.2;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:43 error Missing BP Configuration Setting TLV Type: 17.1;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:48 warning DHCP WARNING - Non-critical field invalid in response ;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:45 notice Honoring MDD; IP provisioning mode = IPv4
2020-06-25 15:29:32 critical No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:23 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:21 critical No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:21 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:20 critical No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:20 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:19 critical No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:19 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:19 critical No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:29:18 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-25 15:28:32 critical Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
0 Kudos
Alex
Community Moderator
Community Moderator
juni 2020

Hi @annoniempjuh,

Dat zijn niet bepaald meldingen/logs waar je gelukkig van wordt. Ik ben aan deze kant je signaal ingedoken, maar kan het eigenlijk niet echt rijmen met de zeer afwijkende resultaten in je logboek. Overigens zijn het ook heel veel meldingen binnen één of twee minuten. Hoe lang ligt het er gemiddeld dan uit? En hoe vaak komt dit per dag voor? Op basis van je ervaringen op dit moment, denk ik dat het verstandig is een monteur in te plannen.

0 Kudos
annoniempjuh
Level 1
Topicstarter
juni 2020

afgelopen week vooral woensdag en donderdag was vreselijk, denk dat ik wel 10x heb moeten ingrijpen. vandaag is ie verdacht rete stabiel (lees: geen merkbare uitval gezien) *klopt af op houten bureau*, OPNsense is de afgelopen weken niks verandert dus die durf ik nog steeds uit te sluiten, en daarbij lijkt mij het zo dat ie niet de T3 en t4 errors kan veroorzaken… (vooral de momenten dat er meerdere direct achterelkaar komen...)



0 Kudos
Alex
Community Moderator
Community Moderator
juni 2020

Laten we uiteraard hopen dat het een voorbode is op meer goeds! Ik zal ondertussen dan ook even een nauwkeurige meting starten voor 3 dagen om alles nog wat beter in kaart te brengen. Mochten we toch op een monteur uitkomen, dan kan het daar ook bij helpen.

0 Kudos
annoniempjuh
Level 1
Topicstarter
juni 2020

vanmiddag niet hard genoeg afgetikt, het was weer raak, gedeelte van de logboek kunnen kopiëren, hij is 2 maal kort achterelkaar geklapt:

Time Priority Description
2020-06-27 22:43:37 notice TLV-11 - unrecognized OID;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:35 error Missing BP Configuration Setting TLV Type: 17.9;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:35 error Missing BP Configuration Setting TLV Type: 17.8;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:35 error Missing BP Configuration Setting TLV Type: 17.7;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:35 error Missing BP Configuration Setting TLV Type: 17.6;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:35 error Missing BP Configuration Setting TLV Type: 17.5;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:35 error Missing BP Configuration Setting TLV Type: 17.4;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:35 error Missing BP Configuration Setting TLV Type: 17.3;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:35 error Missing BP Configuration Setting TLV Type: 17.2;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:35 error Missing BP Configuration Setting TLV Type: 17.1;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:33 warning DHCP WARNING - Non-critical field invalid in response ;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:30 notice Honoring MDD; IP provisioning mode = IPv4
2020-06-27 22:43:24 critical No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:14 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:13 critical No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:13 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:12 critical No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:12 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:05 critical No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:04 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:03 critical No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:03 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:42:19 critical Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:39:44 warning RNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:39:39 notice TLV-11 - unrecognized OID;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:39:38 error Missing BP Configuration Setting TLV Type: 17.9;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:39:38 error Missing BP Configuration Setting TLV Type: 17.8;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:39:38 error Missing BP Configuration Setting TLV Type: 17.7;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:39:38 error Missing BP Configuration Setting TLV Type: 17.6;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:39:38 error Missing BP Configuration Setting TLV Type: 17.5;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:39:38 error Missing BP Configuration Setting TLV Type: 17.4;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:39:38 error Missing BP Configuration Setting TLV Type: 17.3;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;





het gaat dus bij de UBEE al fout, opnsense gaf ditmaal ook aan package lose, dit zag ik voor het eerst, vaak was het eigenlijk altijd direct  "offline". (ik monitor de WAN zijde met de ingebakken monitor tools) Tijdens het typen van dit bericht klapte de verbinding er nogmaal uit:
Time Priority Description
2020-06-27 22:52:05 critical No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:51:54 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:51:54 critical No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:51:54 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:51:54 critical No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:51:54 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:51:53 critical No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:51:53 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:51:53 critical No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:51:52 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:51:06 critical Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:48:54 warning RNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:48:53 critical Started Unicast Maintenance Ranging - No Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:45:12 warning RNG-RSP CCAP Commanded Power in Excess of 6 dB Below the Value Corresponding to the Top of the DRW;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:37 notice TLV-11 - unrecognized OID;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:35 error Missing BP Configuration Setting TLV Type: 17.9;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:35 error Missing BP Configuration Setting TLV Type: 17.8;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:35 error Missing BP Configuration Setting TLV Type: 17.7;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:35 error Missing BP Configuration Setting TLV Type: 17.6;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:35 error Missing BP Configuration Setting TLV Type: 17.5;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:35 error Missing BP Configuration Setting TLV Type: 17.4;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:35 error Missing BP Configuration Setting TLV Type: 17.3;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:35 error Missing BP Configuration Setting TLV Type: 17.2;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:35 error Missing BP Configuration Setting TLV Type: 17.1;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:33 warning DHCP WARNING - Non-critical field invalid in response ;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:30 notice Honoring MDD; IP provisioning mode = IPv4
2020-06-27 22:43:24 critical No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:14 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:13 critical No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:13 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:12 critical No Ranging Response received - T3 time-out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
2020-06-27 22:43:12 critical Received Response to Broadcast Maintenance Request, But no Unicast Maintenance opportunities received - T4 time out;CM-MAC=90:32:4b:c7:e7:cb;CMTS-MAC=00:17:10:91:50:8c;CM-QOS=1.1;CM-VER=3.1;
  Dit begind echt zwaar vervelend te worden, ben bijna geniegd om m'n hele huishouden naar een 4G abbo te verplaatsen...
0 Kudos

Niet gevonden wat je zocht?

Vind de oplossing met onze zoekmachine

Vul de belangrijkste trefwoorden in en vind het topic die past bij je vraag. Onze community zit boordevol kennis.

annuleren
Suggesties inschakelen
Met de functie voor automatische suggesties kun je je zoekresultaten snel verfijnen doordat mogelijke overeenkomsten wordt voorgesteld terwijl je typt.
Resultaten voor
Weergeven  enkel  | Zoek in plaats daarvan naar
Bedoelde u:
Meer resultaten
Start een nieuw topic

Stel je vraag aan andere community leden

Start je eigen topic en krijg hulp van anderen. Op de community helpen ervaren klanten je graag op weg.

Start een nieuw topic
Terug
